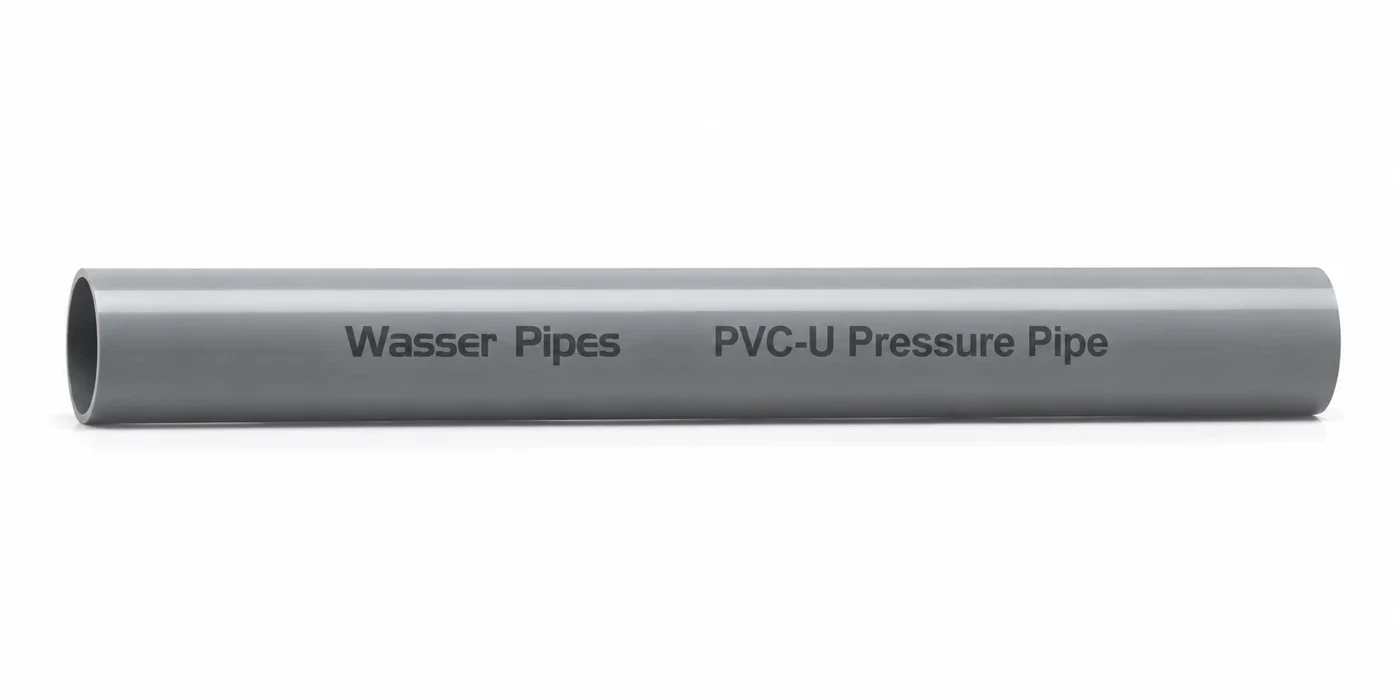

PVC-U Pressure Pipe
Grey unplasticised PVC pressure pipe in 6 metre lengths for pressurised cold water supply and distribution.
PN6–PN20 · 40–160 mm · 6 m lengths · Grey
- Drinking water supply
- Pressurised cold water distribution
- Irrigation and infrastructure mains
What this pipe is used for
Every application below is one the PVC-U Pressure Pipe is specified for, with the manufacturer's note that supports it.
Drinking-water supply
Most ideal for carrying drinking water as they are not subjected to contamination.
High-pressure water supply
Nominal pressures PN6 to PN20, up to 20 bar at 20°C.
Industrial or infrastructure projects
Immune to chemical, electrolytic and galvanic action, and self-extinguishing, which eliminates the need for fire resistant coatings.
Why this pipe
- Most ideal for carrying drinking water — not subjected to contamination
- Immune to chemical, electrolytic and galvanic action, so free from corrosion
- Self-extinguishing, which eliminates the need for fire resistant coatings
- Composition
- 1 layer (PVC)
- Nominal pressure
- PN6, PN8, PN10, PN12.5, PN16 and PN20
- Length
- 6 metres
- Colour
- Grey
- Maximum temperature
- 60°C
Advantages
Odourless and hygienic
These pipes are most ideal for carrying drinking water as they are not subjected to contamination.
High corrosion resistance
Being immune to chemical, electrolytic and galvanic action these pipes are free from corrosion.
High chemical resistance
Pipes offer excellent resistance to acids, oxidizing agents, alkalis, oils and domestic effluents.
Smooth bore
Pipes have a smooth inside surface and hence better flow characteristics in comparison to conventional drainage pipes.
Self-extinguishing quality
This eliminates the need for fire resistant coatings.
Maintenance free
Corrosion resistance property of the PVC-U pipes eliminates the need for painting or coating.
Dimensions, pressure ratings and product codes
| Nominal size (mm) | PN6 | PN8 | PN10 | PN12.5 | PN16 | PN20 |
|---|---|---|---|---|---|---|
| 40 | 1.5 | 1.6 | 1.9 | 2.4 | 3.0 | 3.7 |
| 50 | 1.6 | 2.0 | 2.4 | 3.0 | 3.7 | 4.6 |
| 63 | 2.0 | 2.5 | 3.0 | 3.8 | 4.7 | 5.8 |
| 75 | 2.3 | 2.9 | 3.6 | 4.5 | 5.6 | 6.8 |
| 90 | 2.8 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 |
| 110 | 2.7 | 3.4 | 4.2 | – | 6.6 | 8.1 |
| 160 | 4.0 | 4.9 | 6.2 | – | 9.5 | 11.8 |
Reproduced exactly as published in the Wasser Pipes technical data. Confirm the wall thickness for your pressure class with Astral Industries Limited before ordering.
| Pipe material temp. | PN6 | PN8 | PN10 | PN12.5 | PN16 | PN20 |
|---|---|---|---|---|---|---|
| 20°C | 6.0 bar | 8.0 bar | 10 bar | 12.5 bar | 16 bar | 20 bar |
| 30°C | 5.1 bar | 7.0 bar | 8.9 bar | 11 bar | 14 bar | 16.2 bar |
| 40°C | 4.1 bar | 5.5 bar | 7.0 bar | 8.8 bar | 11 bar | 14.0 bar |
| 50°C | 3.5 bar | 4.5 bar | 5.0 bar | 7.1 bar | 9.1 bar | 10.5 bar |
For temperatures greater than 20°C, the maximum working pressures of PVC pipes should be reduced.
Product codes
PN6
- PPG40,6
- PPG50,6
- PPG63,6
- PPG75,6
- PPG90,6
- PPG110,6
PN8
- PPG40,8
- PPG50,8
- PPG63,8
- PPG75,8
- PPG90,8
- PPG110,8
PN10
- PPG40,10
- PPG50,10
- PPG63,10
- PPG75,10
- PPG90,10
- PPG110,10
PN12.5
- PPG40,12.5
- PPG50,12.5
- PPG63,12.5
- PPG75,12.5
- PPG90,12.5
- PPG110,12.5
PN16
- PPG40,16
- PPG50,16
- PPG63,16
- PPG75,16
- PPG90,16
- PPG110,16
PN20
- PPG40,20
- PPG50,20
- PPG63,20
- PPG75,20
- PPG90,20
- PPG110,20
PN25
- PPG40,25
- PPG50,25
- PPG63,25
- PPG75,25
- PPG90,25
- PPG110,25
Specifications verified against the Wasser Pipes technical data from Astral Industries Limited.
