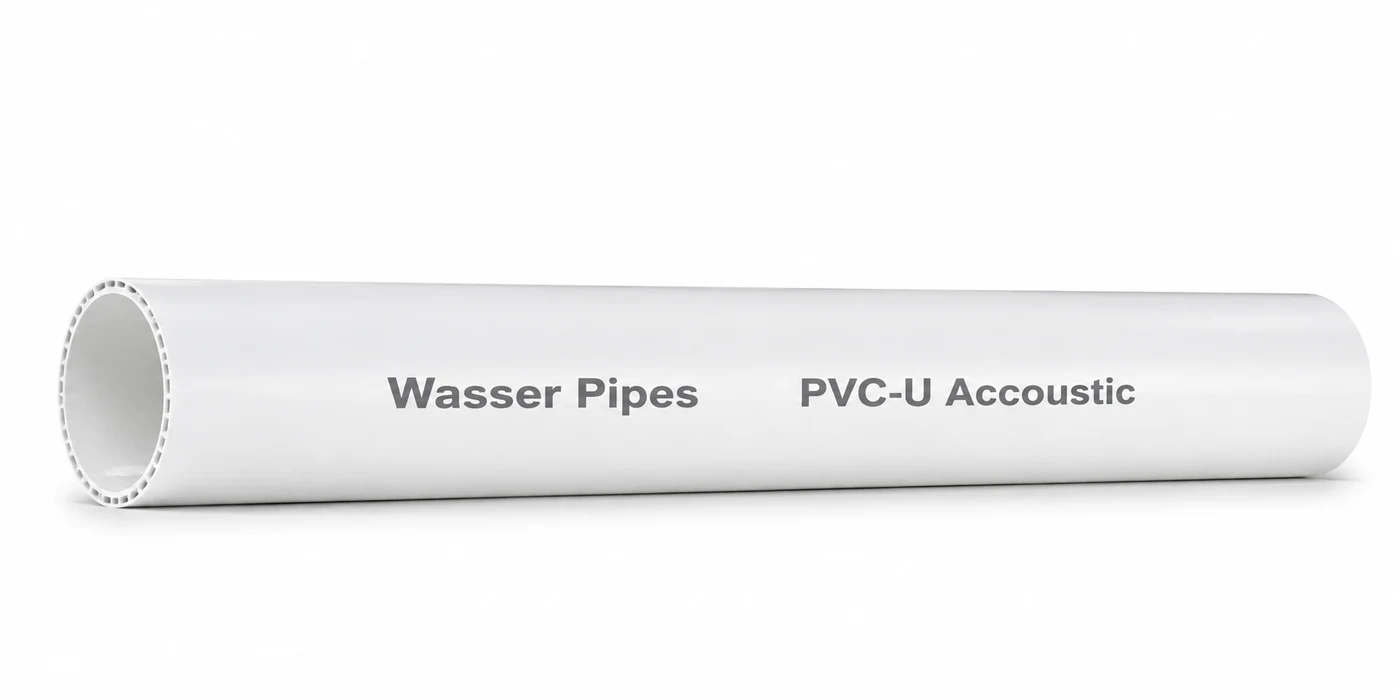

PVC-U Acoustic Pipe
A three-layer white PVC-U pipe with a hollow grid middle layer that cuts drainage noise by more than 6 dB.
110 mm and 160 mm · 6 m lengths · White
- Quiet drainage stacks in buildings
- Apartments, hotels and hospitals
- Soil and waste where noise matters
What this pipe is used for
Every application below is one the PVC-U Acoustic Pipe is specified for, with the manufacturer's note that supports it.
Quiet drainage for buildings
The middle hollow layer gives an acoustic effect; the reduction in noise levels is more than 6 dB.
Why this pipe
- Reduction in noise levels of more than 6 dB
- Internal vanes reduce vortex and direct the flow
- Hollow grid layout adds structural strength and rigidity
- Composition
- 3 layer: outer and inner layer of PVC & middle hollow grid layer
- Length
- 6 metres
- Colour
- White
- Noise reduction
- More than 6 dB
Advantages
Reduction in noise level
Due to the middle layer, the silent pipes have exceptionally good noise insulating properties which act to reduce the noise generated by transportation of fluid inside the pipe. The reduction in noise levels is more than 6 dB.
Directs flow
The vanes inside the pipe assist in reducing vortex hence directing the flow while giving better flow characteristics.
Easy to install
They are easy to install. In fact, silent pipes do not require any special care or procedure for installation.
Excellent chemical and corrosion resistance
Being non-metallic, this system is completely free from corrosion and offers exceptionally good resistance to a wide range of chemicals.
Quick and efficient removal of waste without leakage
Mirror smooth and restriction free inner surface of pipes ensures superior flow characteristics, thus the pipes are free from problems of clogging and drain choke-up. System is completely leak-proof and designed to maintain high standards of hygiene.
Least maintenance
Once installed the pipes require minimal maintenance.
Dimensions, pressure ratings and product codes
| Dimension | 110 | 160 |
|---|---|---|
| Size (mm) | 110 | 160 |
| ID (mm) | 100 | 148.8 |
| S (mm) | 5.0 | 5.6 |
The middle hollow layer is provided for the 110 mm and 160 mm sizes.
Product codes
Acoustic
- PVS110
- PVS160
Specifications verified against the Wasser Pipes technical data from Astral Industries Limited.
