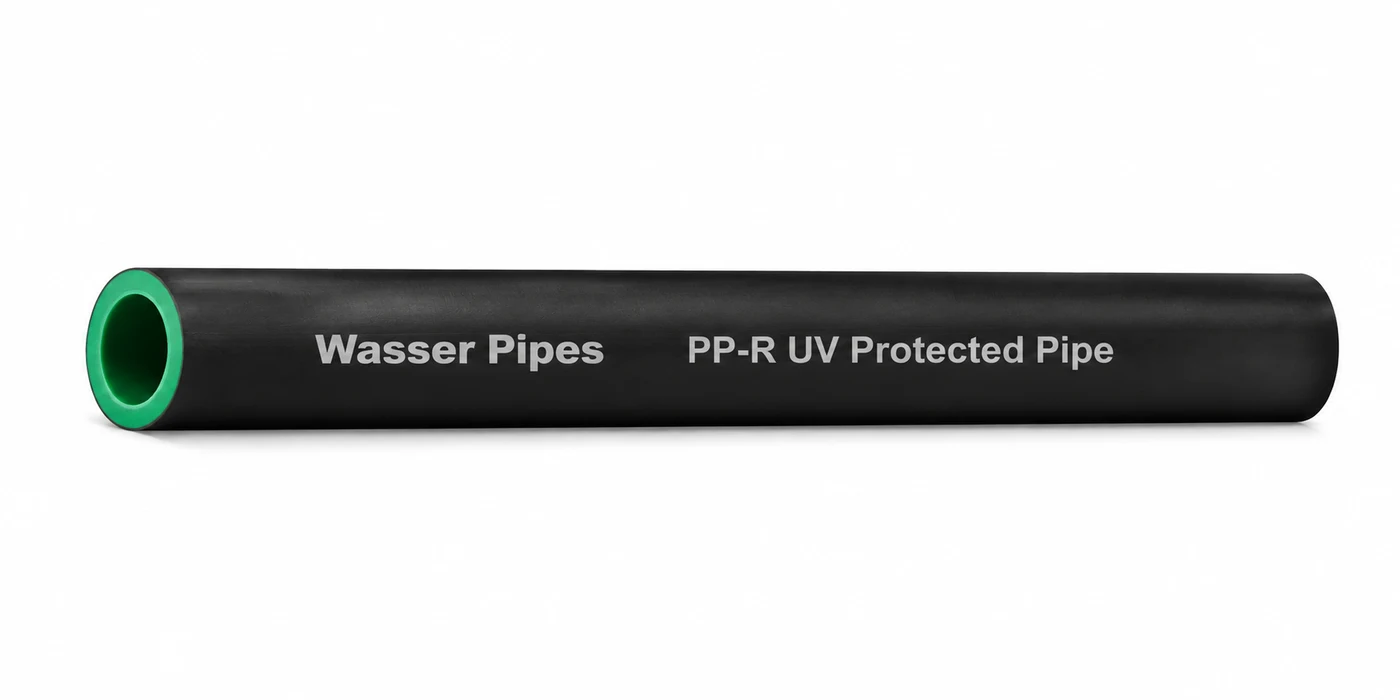

PP-R UV Protected Pipe
A two-layer PP-R pipe with a UV-stabilised black skin over a green PP-R core, built for drinking water lines exposed to sunlight.
PN10/20 · 20 bar · OD 20–110 mm · 4 m lengths
- Drinking water supply
- Outdoor and UV-exposed installations
- Hot and cold water plumbing
What this pipe is used for
Every application below is one the PP-R UV Protected Pipe is specified for, with the manufacturer's note that supports it.
Drinking-water supply
Most ideal for carrying drinking water as they do not subject to contamination.
Outdoor or UV-exposed installation
The UV protected layer is comprised of UV resistant materials which protect the pipe from flaking when exposed to sunlight over time.
Why this pipe
- Most ideal for carrying drinking water — not subject to contamination
- UV protected layer resists flaking in sunlight over time
- Excellent resistance to acids, oxidizing agents, alkalis, oils and domestic effluents
- Composition
- 2 layers (outer layer mixture of PP-R & UV stabilizer, inner layer of PP-R)
- Pressure rating
- 20 bar (PN10/20)
- Length
- 4 metres
- Colour
- Outer layer black, inner layer green
- Manufactured to
- KS ISO minimum requirements with additional UV protection
Advantages
Odourless and hygienic
These pipes are most ideal for carrying drinking water as they do not subject to contamination.
Protected against UV rays
The UV protected layer is comprised of UV resistant materials which protect the pipe from flaking when exposed to sunlight over time.
High chemical resistance
Pipes offer excellent resistance to acids, oxidizing agents, alkalis, oils and domestic effluents.
Smooth bore
Pipes have a smooth inside surface and hence better flow characteristics.
Longer lasting
As these pipes are free from weaknesses caused by scale formation, rusting, weathering and chemical action they last for a lifetime.
Installation
The installation methodology and requirement are the same as normal PP-R pipes.
Dimensions, pressure ratings and product codes
| Dimension | 20 | 25 | 32 | 40 | 50 | 63 | 75 | 90 | 110 |
|---|---|---|---|---|---|---|---|---|---|
| OD (mm) | 20 | 25 | 32 | 40 | 50 | 63 | 75 | 90 | 110 |
| ID (mm) | 13.2 | 16.6 | 21.2 | 26.6 | 33.4 | 42.0 | 50.0 | 60.0 | 73.4 |
| S (mm) | 3.40 | 4.20 | 5.40 | 6.70 | 8.30 | 10.5 | 12.5 | 15.0 | 18.3 |
| PN | 10°C – 30°C | 30°C – 65°C | 80°C – 90°C |
|---|---|---|---|
| 8/16 | 16 bar | 15 bar | 4.8 bar |
| 10/20 | 20 bar | 18 bar | 5.5 bar |
Product codes
PN10/20
- PPRU20
- PPRU25
- PPRU32
- PPRU40
- PPRU50
- PPRU63
- PPRU75
- PPRU90
- PPRU110
Specifications verified against the Wasser Pipes technical data from Astral Industries Limited.
